Description

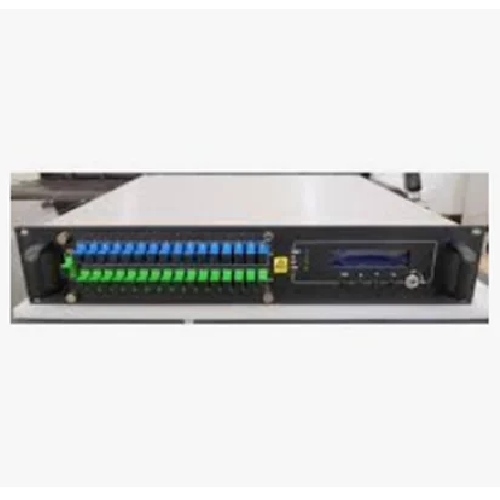

1 Erbium Doped Fiber Amplifier (EDFA) The EDFA is the basic building block of advanced WDM systems. It provides gain across a wide wavelength range of over 30 nm in either the C or L bands. It is bit rate independent for any current transmission rate. A block diagram of a very basic amplifier is shown in Figure 13.1.
